Positive Material Identification: Essential Guide for Australian Industries

Estimated Reading Time: 10 minutes

Date: 25/4/2025

Table of Contents

• What Is Positive Material Identification?
• Two Techniques for Positive Material Identification: XRF and OES
• Why Choose Positive Material Identification Over Other NDT Methods?
• How Deep Can Positive Material Identification Test?
• Common Use Cases for Positive Material Identification in Australian Industries
• Meet the Team at APEC Inspection - Newcastle's PMI Specialists
• Conclusion
• Frequently Asked Questions About Positive Material Identification

What Is Positive Material Identification?

Positive Material Identification (PMI) is a non-destructive testing (NDT) method used to verify the chemical composition of metals and alloys. PMI testing ensures that materials used in critical applications adhere to specifications, preventing failures, safety risks, and costly downtime.

In Australia's diverse industrial environment, PMI plays a crucial role in sectors such as oil and gas, petrochemical processing, power generation, and the rapidly growing hydrogen production facilities. Accurate material verification is essential to meet Australia's stringent operational demands and ensure regulatory compliance.

Australia's industries operate in tough environments, requiring material integrity to prevent failures and uphold safety and quality. PMI provides this assurance by preventing the use of incorrect or counterfeit metals.

Two Techniques for Positive Material Identification: XRF and OES

The two main PMI testing techniques used in Australian industries are X-Ray Fluorescence (XRF) and Optical Emission Spectroscopy (OES). Both have distinct advantages depending on the application and material requirements.

X-Ray Fluorescence (XRF)

• How it Works: XRF exposes materials to X-rays, causing elements to emit secondary, element-specific X-rays.
• Advantages: Portable handheld devices ideal for on-site use; rapid, non-contact analysis; suitable for most metals including some non-metals; can test hot samples directly.
• Limitations: Unable to detect light elements like carbon, phosphorus, or sulphur; shallow surface penetration (~25 microns) requires clean surfaces; less precise for low-carbon alloys.

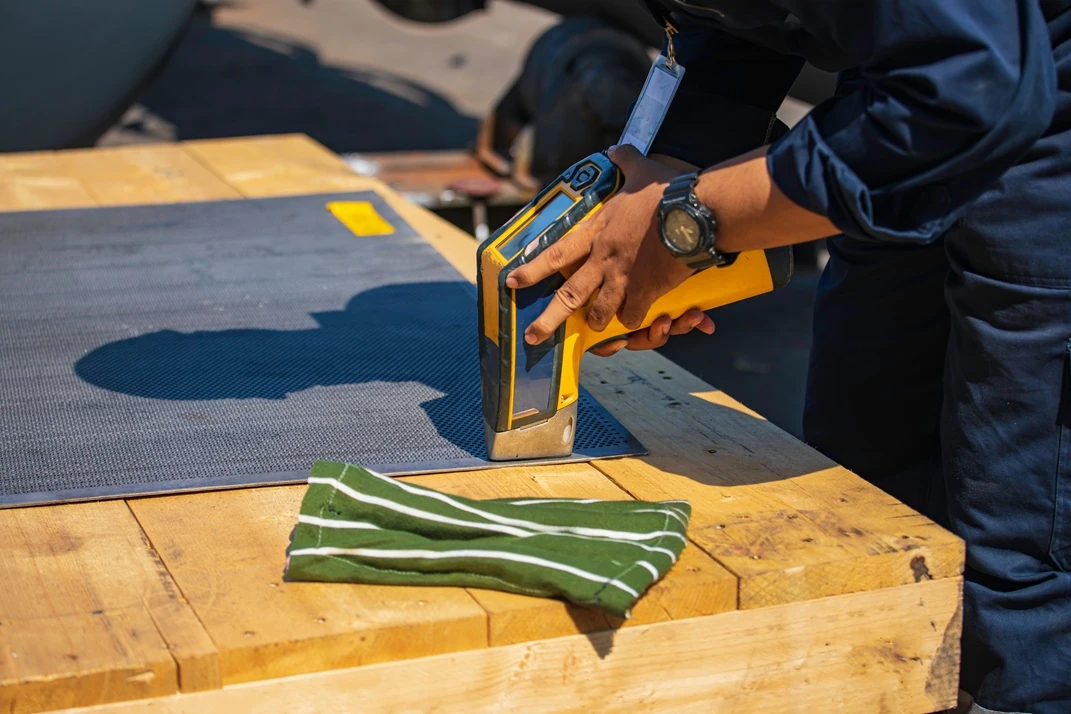

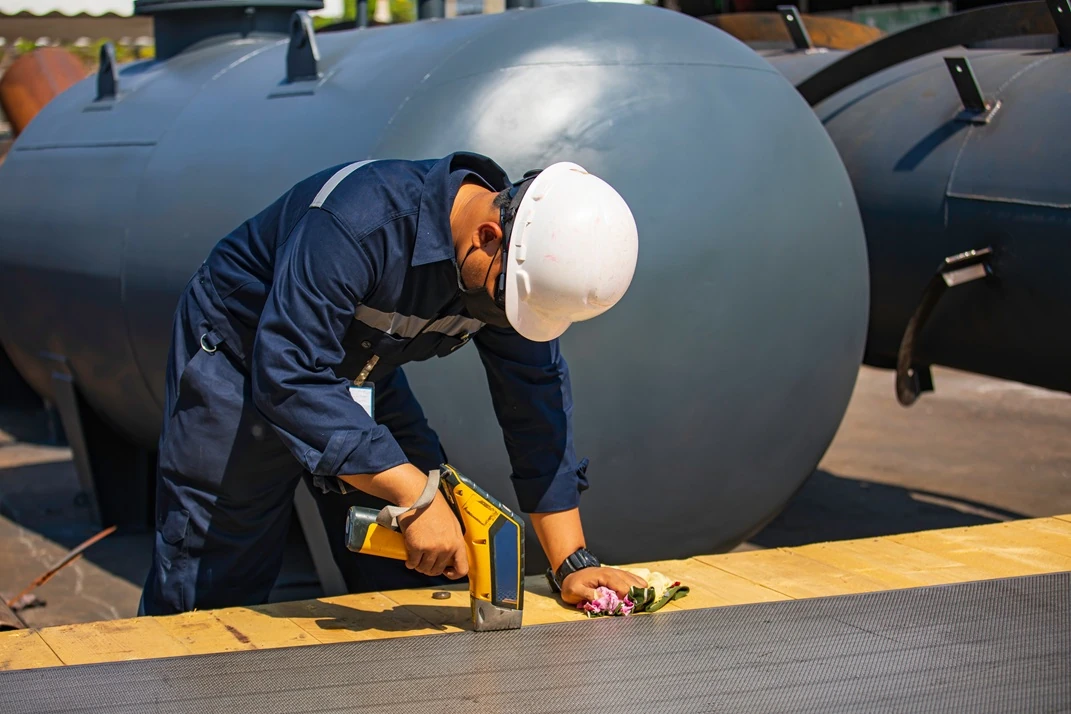

Image 1: Positive Material Identification (PMI) inspecting surface on plate using XRF.

Optical Emission Spectroscopy (OES)

• How it Works: OES excites metal atoms by an electric spark in an inert atmosphere, causing them to emit light unique to each element.
• Advantages: Detects virtually all elements including carbon and other light elements; provides precise quantitative alloy analysis essential for certification.
• Limitations: Usually less portable than XRF; requires surface preparation like grinding; spark may leave microscopic marks but is still non-destructive.

Choosing between XRF and OES depends on requirements. For quick on-site screening, XRF is best when carbon detection isn't critical. For detailed alloy verification, especially when carbon content matters, OES is preferred.

At APEC Inspection in Newcastle, NSW, both technologies are available, ensuring clients get tailored solutions aligned to their Australian industrial needs.

Why Choose Positive Material Identification Over Other NDT Methods?

Unlike other NDT methods such as ultrasonic testing or magnetic particle inspection, PMI provides direct chemical composition verification, which is critical to confirming correct material use.

• Direct Elemental Analysis: PMI identifies alloy chemistry, not just flaws.
• Material Compliance: Ensures usage of correct alloys compliant with Australian and international standards like ASME and ASTM.
• Safety Assurance: Prevents failures caused by incorrect or counterfeit materials, protecting assets and workforce safety.
• Quick and On-Site: Portable systems deliver near-instant results to support fast decision making.
• Welding Integrity: Verifies proper weld filler metals to safeguard joints.

PMI complements rather than replaces other NDT methods, forming part of a comprehensive asset integrity strategy crucial to Australian manufacturing, mining, and energy sectors.

How Deep Can Positive Material Identification Test?

PMI techniques penetrate only the surface layer of the tested materials:

• XRF penetration depth: Approximately 0.001 inches (20–30 microns), necessitating clean, uncoated, and uncontaminated surfaces.
• OES penetration depth: Microns, with vaporisation of a tiny surface area by spark excitation.

Proper surface preparation—grinding or polishing—is standard practice in Australian facilities to ensure PMI results accurately reflect base metal composition, especially important in environments such as marine, mining, or industrial sites with contamination risks.

Common Use Cases for Positive Material Identification in Australian Industries

PMI testing is indispensable across many Australian industrial sectors:

Oil and Gas Industry

• Verification of pipeline alloys, pressure vessels, valves, and fittings to withstand extreme pressures and corrosion.
• Supporting maintenance, inspection, and compliance with Australian and global standards.

Petrochemical and Chemical Processing Plants

• Confirming corrosion-resistant stainless steels and nickel alloys in reactors and heat exchangers.
• Preventing chemical leaks and accidents by verifying material specifications.

Hydrogen Plants

• Hydrogen's flammable and embrittling effects demand specialised alloys.
• PMI verifies that pipes, valves, and storage vessels are fabricated from materials compatible with hydrogen.
• Essential for Australia's growing hydrogen economy and safe plant operation.

Power Generation Facilities

• Ensuring turbines, boilers, and cooling systems contain specified alloys that withstand thermal and mechanical stress.
• Reducing downtime by preventing unexpected failures.

Aerospace and Defence

• Verifying critical aerospace components meet strict alloy grade requirements.
• Supporting ongoing maintenance and certification demands.

Manufacturing and Fabrication

• Confirming raw materials and welding filler metals conform to design specifications.
• Minimising recalls and production defects caused by incorrect materials.

Food and Pharmaceutical Industries

• Ensuring sanitary processing equipment uses certified stainless steels to prevent contamination.

Meet the Team at APEC Inspection - Newcastle's PMI Specialists

Based in Newcastle, NSW, APEC Inspection provides expert PMI testing services tailored to the Australian industrial environment.

• Utilising advanced handheld XRF and laboratory-grade OES technologies.
• Staffed by NATA and AINDT certified technicians with extensive experience across multiple industries.
• Flexible on-site testing services covering all major Australian states and territories.
• Comprehensive reporting to support regulatory compliance and asset integrity management.

APEC Inspection's coordinated NDT and PMI services provide Australian industries with confidence and safety in their material verification processes.

Conclusion

Positive Material Identification is a cornerstone of Australian industrial safety and quality assurance. By employing XRF and OES technologies, PMI provides direct chemical verification unmatched by other non-destructive testing methods.

Its shallow testing depth requires careful surface prep but offers rapid, accurate alloy analysis essential across sectors from oil and gas to emergent hydrogen plants.

Newcastle-based APEC Inspection leads the way with expert PMI services tailored to Australia's unique industrial challenges, ensuring safe, compliant, and reliable operations nationwide.

For further information on related testing and inspections, visit our pages on Welding Procedure & Qualification and Pressure Vessel Inspection.
