Phased Array Ultrasonic Testing: Techniques, Benefits, and Applications in Australia

Phased Array Ultrasonic Testing (PAUT) is revolutionising non destructive testing in Australia's industrial landscape. From mining, manufacturing, hydrogen plants, oil and gas, PAUT provides detailed insights into material integrity without causing damage. This blog explores the different phased array ultrasonic testing techniques, advantages over other NDT methods, inspection depth capabilities, and detailed applications in pressure vessel and weld inspection, including expert services available in Newcastle.

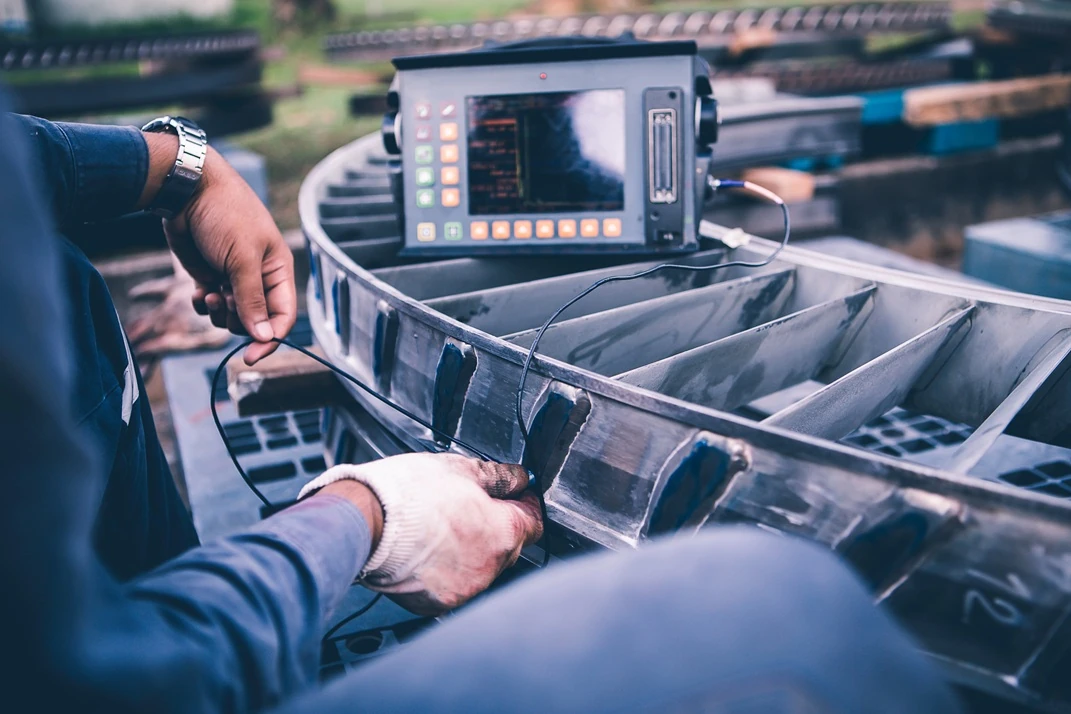

What Are the Different Techniques for Phased Array Ultrasonic Testing?

PAUT uses multiple ultrasonic elements arranged in an array, electronically controlling pulse timing to steer and focus beams for flexible inspections depending on the material and defect type.

Key PAUT Techniques

• Sector Scanning (S-Scan): Electronically sweeps the beam through an angular sector producing cross-sectional images—ideal for weld inspections and complex geometries found in Australian industries.
• Electronic Scanning (Linear and Dynamic): Electronically shifts the beam across surfaces to mimic mechanical scanning, enabling rapid coverage of large areas like pipelines and storage tanks.
• Total Focusing Method (TFM): Advanced technique electronically focusing at multiple points for detailed 3D imaging, enhancing defect characterisation and sizing accuracy.

Choosing the Right Technique

• Sector Scanning: Offers fast multi-angle coverage and real-time imaging but has limited angular range and less detail than TFM.
• Electronic Scanning: Speeds large-area inspections with reduced mechanical movement but moderately less resolution compared to TFM.
• Total Focusing Method: Provides high-resolution images perfect for critical flaw analysis but requires advanced equipment and operator skill.

Australian industries balance inspection speed and resolution by selecting appropriate PAUT techniques—for example, rapid corrosion surveys with electronic scanning and critical weld inspections with TFM.

Why Use Phased Array Ultrasonic Testing Over Other NDT Methods?

PAUT's advantages make it Australia's preferred NDT method across mining, oil and gas, and manufacturing sectors.

• Better Flaw Detection: Multi-angle beam steering allows detection of internal and subsurface defects beyond traditional UT or magnetic particle methods.
• Superior Imaging: Electronic beam focusing generates clear defect images that meet Australia's strict pressure vessel testing standards (AS 3788).
• Faster Inspections: Electronic steering reduces mechanical probe movement, accelerating data collection and minimising downtime in 24/7 operations.
• Versatility: Suitable for complex shapes and materials where eddy current or radiography may fall short.
• Safety: Radiation-free and portable, enabling safe, on-site testing especially in remote Australian locations.

Comparison of PAUT with Other Methods

Method	Advantages	Limitations	PAUT Advantage
Conventional UT	Lower cost, widely used	Single angle, slower scanning	Multi-angle, electronically controlled beams
Radiographic Testing	Good penetration	Radiation risk, expensive setup	Radiation-free, portable, safe for onsite
Magnetic Particle Testing	Detects surface cracks well	Requires surface prep	Non-contact, faster and deeper defect detection
Eddy Current Testing	Good for surface defects	Limited depth penetration	Penetrates deeper with multi-angle scans

How Deep Can Phased Array Ultrasonic Testing Inspect Materials?

Effective inspection depth depends on the material and frequency chosen:

• Typical Depth Range: PAUT inspects thicknesses from a few millimetres up to about 300 mm or more, suitable for Australian pressure vessels and heavy engineering components.
• Frequency Impact: Lower frequencies (e.g., 1-2 MHz) penetrate deeper but reduce resolution, while higher frequencies enhance image clarity but limit depth.
• Material Limitations: High attenuation materials like coarse grain steels or composites reduce effective penetration.
• Application in Australia: These depths cover common vessel and pipeline thicknesses ensuring detection of corrosion, cracks, or flaws critical in regulatory compliance.

Using PAUT for Pressure Vessel and Weld Inspection in Australia

Pressure vessels and welds are fundamental to industrial safety and require thorough inspection. PAUT delivers unparalleled accuracy and compliance with Australian regulations.

PAUT in Pressure Vessel Inspection

• Comprehensive Defect Detection: Multi-angle beam capability detects cracks, corrosion, laminations, and inclusions affecting structural integrity.
• Thickness and Corrosion Mapping: Accurate metal loss measurement without disassembly enables in-service inspection, maintaining operational continuity in Australia’s industrial plants.
• Faster Inspections: Electronic scanning reduces downtime, critical for continuous operations in mining and petrochemical industries.
• Compliance with Standards: Supports adherence to AS 3788 - Pressure Equipment regulations vital for Australian industry safety.

PAUT for Weld Inspection

• Multi-Angle Beam Steering: Detects weld defects such as porosity, slag inclusions, and cracks that conventional UT might miss.
• Real-Time Imaging: Sector scanning (S-scan) provides instant visualisation of weld quality allowing immediate flaw assessment.
• Subsurface Defect Detection: Detects flaws hidden under coatings or surface finishes without destructive methods.
• Adaptability to Complex Welds: Electronic angle adjustment facilitates inspection of varied weld geometries in Australian infrastructure and manufacturing.

APEC Inspection - Newcastle's Expert NDT Team

For high-quality PAUT pressure vessel and weld inspections, APEC Inspection in Newcastle offers industry-leading expertise:

• Certified Technical Team: Experienced in PAUT and ultrasonic testing with certifications ensuring precise and reliable inspections.
• Advanced Technology: Equipped with state-of-the-art PAUT systems capable of detailed weld and corrosion inspection.
• Customized Solutions: Develops tailored inspection plans meeting specific asset and regulatory needs.
• Onsite Flexibility: Provides rapid, on-location service for Newcastle, Hunter Valley, and wider New South Wales regions.
• Trusted Service: Recognised for supporting mining, oil and gas, and heavy manufacturing sectors with comprehensive NDT services.

Partnering with APEC Inspection maximises safety and compliance, leveraging PAUT's full capabilities for Australian industrial assets.

Practical Applications of Phased Array Ultrasonic Testing in Australian Industry

• Corrosion Mapping: Rapid scanning of large storage tanks and pipelines to detect metal loss.
• Oil and Gas Infrastructure: Inspecting offshore platforms and pipelines where safety and uptime are critical.
• Mining and Heavy Manufacturing: Structural integrity inspections for frames, vessels, and heavy components in Newcastle and Hunter Valley region.
• Aerospace and Automotive Manufacturing: Precise weld and composite inspections enhance manufacturing quality.
• Infrastructure and Construction: Verifying welds in bridges, railways, and buildings.

Emerging Trends and Innovations in PAUT

• Artificial Intelligence: Automating defect detection and classification for faster, more accurate results.
• 3D Imaging and Total Focusing Method (TFM): Producing ultra-high-resolution images of flaws for critical inspections.
• Portable and Miniaturised Devices: Enabling inspections in confined or hazardous areas easily.
• Drone-Assisted Inspections: Combining drones and PAUT for remote or aerial inspections of large or difficult-to-access structures.

Conclusion: The Role of PAUT in Ensuring Australian Industry Safety

Phased Array Ultrasonic Testing is an indispensable NDT method that provides unmatched inspection detail, speed, and safety across Australian industry sectors. It excels particularly in pressure vessel and weld inspection, enhancing compliance with strict standards and supporting operational continuity.

In key industrial regions like Newcastle and the Hunter Valley, PAUT plays a vital role in asset integrity management. The expertise of local specialists such as APEC Inspection ensures businesses receive precise, reliable phased array ultrasonic inspections tailored to their needs.

With ongoing advances in PAUT technology, including AI integration and portable solutions, Australian industries are well positioned to maintain world-class safety and quality standards while minimising downtime and inspection costs.

For tailored phased array ultrasonic testing solutions, especially in Newcastle, the Hunter Valley, and across New South Wales, partnering with trusted providers like APEC Inspection is key to safeguarding your assets and compliance.
